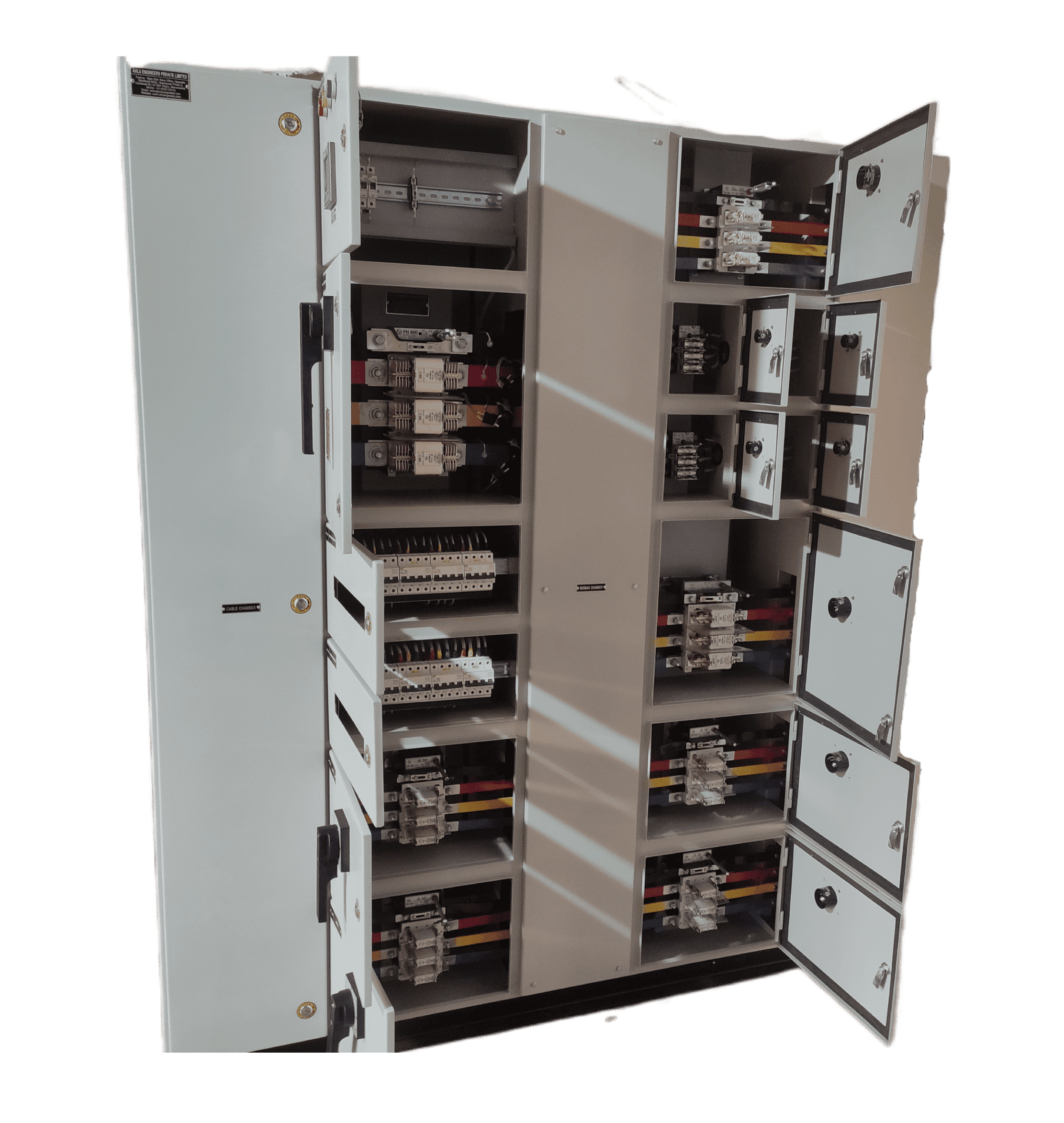

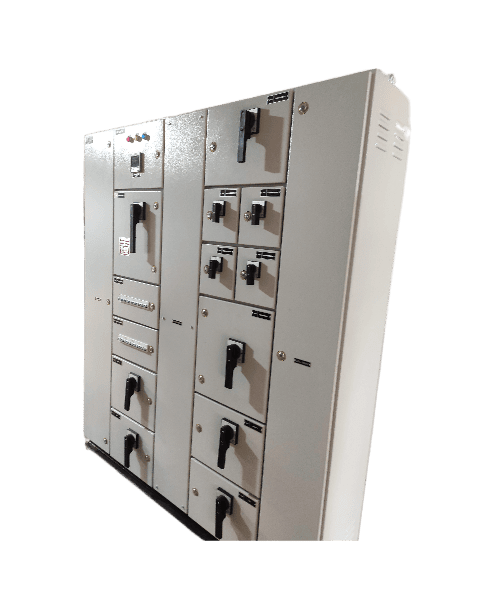

MCC Panel (Motor Control Center)

The Motor Control Canter (MCC) Panel is a panel consisting of one or more 'enclosed sections'. All of these sections have a communal power bus.Also, these are mainly composed of motor control units.We offer these MCCs with the option of number of latest technology starters such as AC/ DC drive starter(covariant frequency drive), direct - on - line starter, soft starter, star delta starter, submersible starter, etc.Their main function is related to induction motors, which inrush starting current is minimized. In addition, there are a number of motor protection equipment in the Motor Control canter(MCC) Panel, such as overload protection, short circuit protection, and single phasing protection, that are useful in safeguarding the motor.

Request Quote

Our MCC involves following features

Remote control operation facility

MCCB for protection

Change over switch for circuit change from mains to DG and vice-versa

Direct on-line starters that include MCB, contactor, thermal overload relay and connectors

Bus Bars of proper rating duly covered with acrylic sheet for safety

Aluminium strip for earthing

Panel light and fan for ventilation

Many more features that solve many practical problems

These MCC units comprise:

Full voltage non-reversing and full voltage reversing starters

AC variable frequency drives

PLC I/O chassis

Solid-state motor controllers

Lighting panels

Transformers

Analog or digital metering

Feeder circuit breakers

Feeder fusible disconnects

Technical Specifications of Motor Control Centre Panel:

Operational Current: 32A to 1600A

Ambient Temperature: 40.50 degree Celsius in single and double front

Withstand Capacity: 16KA to 100 KA

Degree of Protection: As per IS Standards

Types of Starters Include: Automatic Star Delta, Direct On-line, Soft Starters, Varied Frequency Drives, Stator Rotor Starters and Auto Transformer Starters
