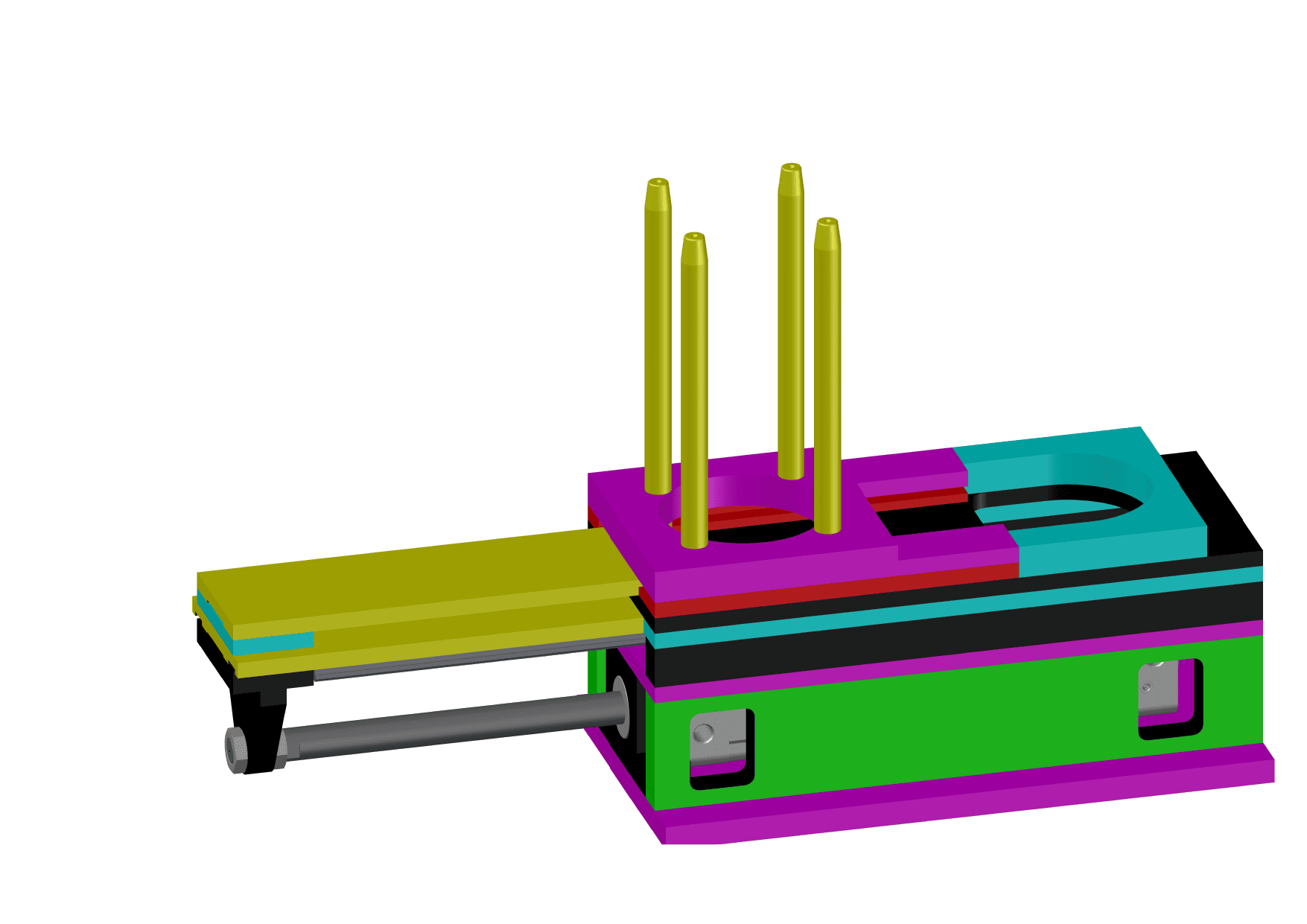

Ahlu Blank Feeder- ABF Series

The Ahlu Blank Feeder Series is designed for efficient and automated sheet feeding in stamping lines. Powered by a precision pneumatic cylinder, it delivers smooth to-and-fro motion for continuous operation. Built from durable tool steel, its heavy-duty frame ensures low wear and extended life. Linear bearings and guide rails offer accurate, low-clearance movement for consistent performance. Its double-decker design reduces cycle time, while the magazine-based system eliminates manual handling—enhancing operator safety and reducing human interference. Integrated press synchronization boosts press utilization and productivity, making it an ideal choice for modern, high-output manufacturing

Request Quote

Characteristics of Ahlu Blank Feeder

Blank Feeder is synchronised with Press Ram movement with the help of Encoders / Cam box / Sensor arrangement based on the applicational requirements.
As Feeding of Blanks is performed based on Press Ram positioning, it provides max. utilization of time with respect to Press operation cycle.
This accessory provides continuous operation capability to the Press which not only doubles the existing production rate but also can be increased on multiple multiplier rate based on component variant.
It eliminates the need of operator in Loading & Unloading of Blanks for certain set of operations after blanking. Similar operations performed on adjacent machines can be easily handled by the single operator.
Magzine Feeding is manual but can be top up easily by the single operator for such multiple machines.
